Description
Medium Duty storage cabinets are built using the same quality standards as our Extreme Duty line, but in a medium duty construction. Constructed with all welded 14 gauge steel components, these cabinets will stand the test of time. Doors are mounted on 3/8” steel pins with brass bushings, welded hinges, and allow 140 degrees of door swing. Solid steel handle accepts heavy padlock (not included). Three point latching system has a top and bottom 3/8” bar lock mechanism with a 3/16” steel plate center latch. Shelves (2) adj height / (1) fixed are 14 gauge steel with formed edges and support 1450 lbs. each. Drawers are mounted on 250lb capacity ball bearing drawer glides that fully extend. Bottom leg supports are 4” high with floor anchoring plates.

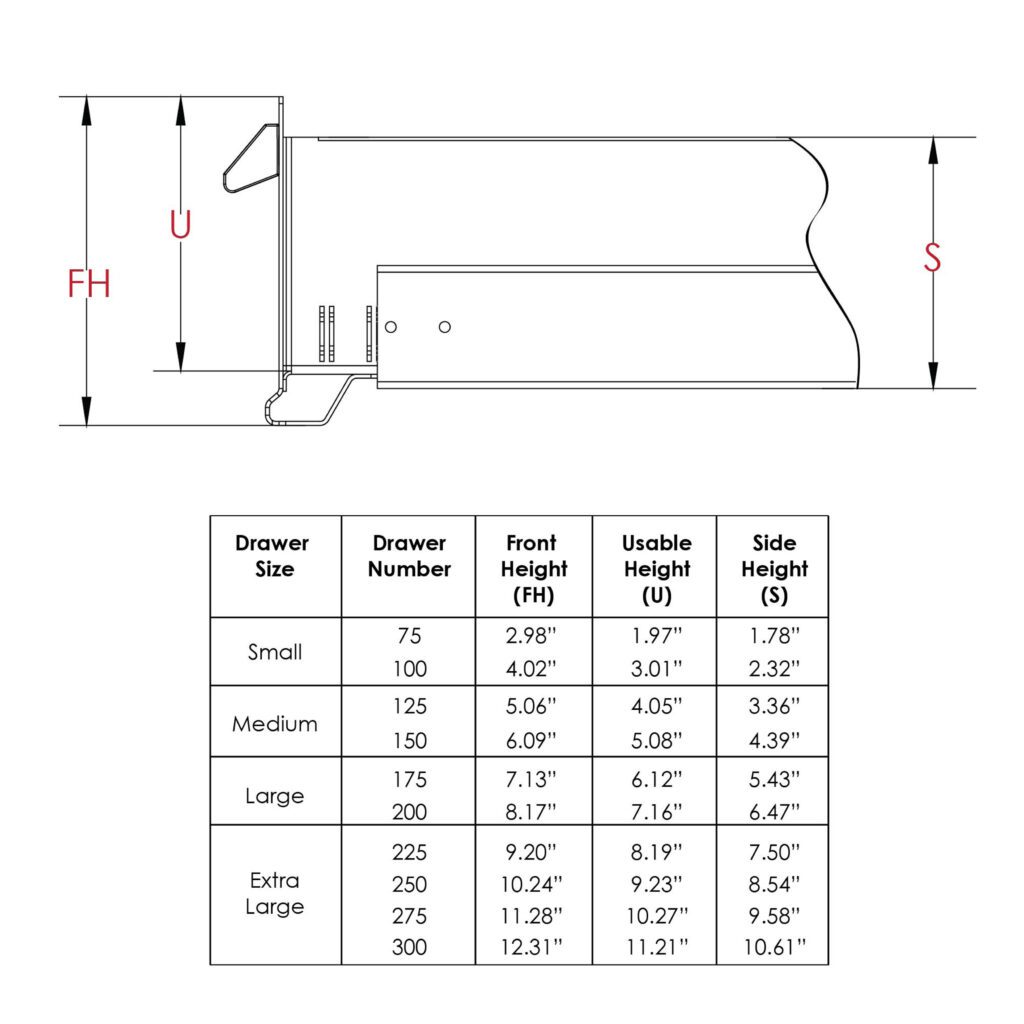

Drawer Height Specs:
(1) 100 Series Drawer (3″H usable height)
(2) 150 Series Drawers (5″H usable height)
(1) 200 Series Drawer (7″H usable height)
(1) 250 Series Drawer (9.25″H usable height)
Available Models/Sizes:
MDC-3624-82_DRW03 / 36″W x 24″D x 82″H
MDC-4824-82_DRW03 / 48″W x 24″D x 82″H
