Description

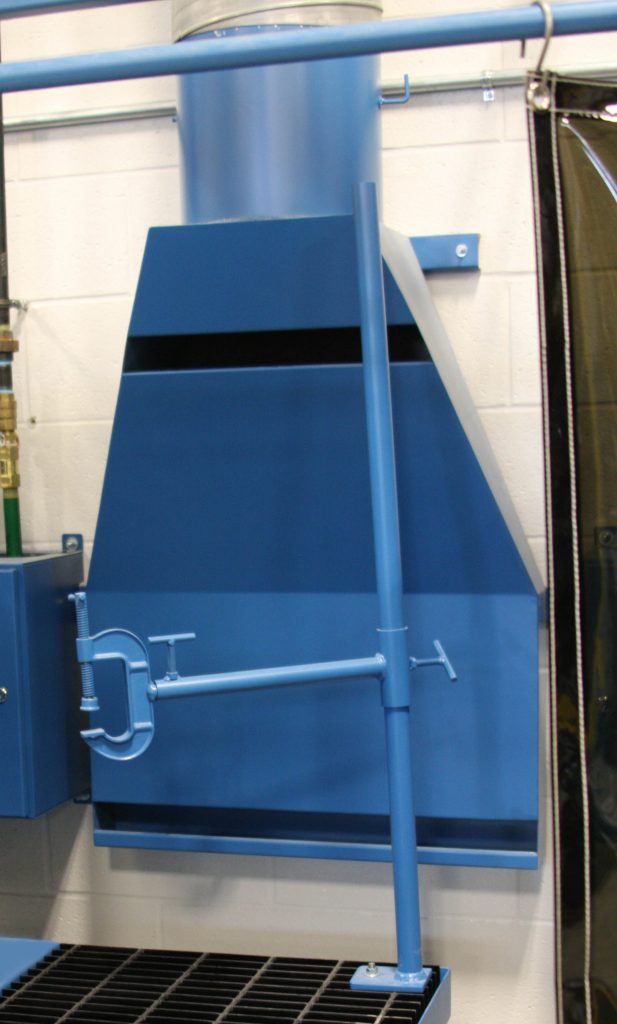

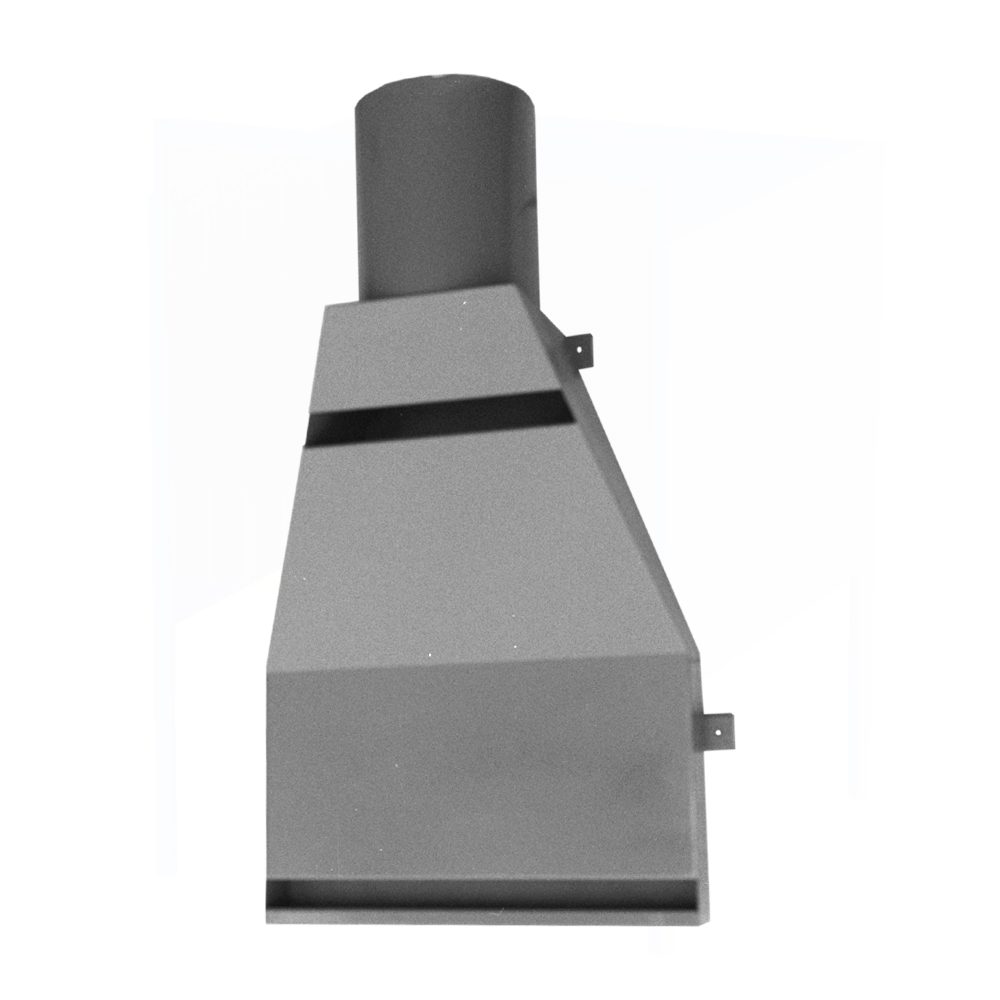

The GAV-1.STR horizontal draw welding vent is designed to be wall mounted over a welding surface. Gases are vented out the two 2″H air intakes that run the full width of the hood. The rectangle body transitions into a round 12″OD outlet for connection to exhaust ducting.
Station Features:
•All Welded Construction of 16 Gauge Steel.
•Two 2”H air intakes run the width of the hood.
•12” Diameter Outlet with Manual Damper.
•Recommended for Exhausting any of our Welding Booths.
•Wall Mounting Tabs.
Dimensions:
•28″W x 13″D x 42″H
Weight:
•71 lbs
