Description

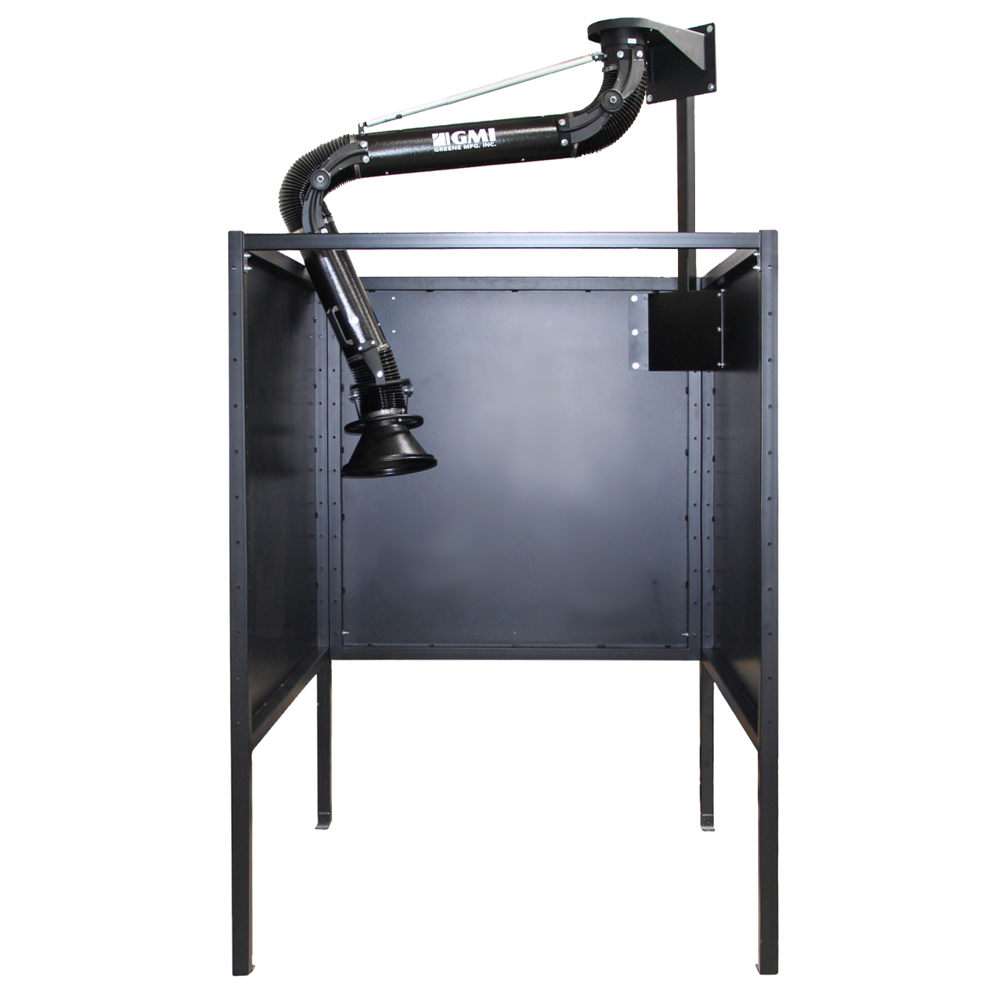

Engineered for welding education and training, our Modular Welding Booths provide a safe, enclosed environment that protects students and nearby personnel from arc flash exposure. Each booth is constructed with a 2″ heavy wall steel tube frame and fully welded 12-gauge steel panels, ensuring long-lasting durability in high-use environments.
Package Includes:
• 5′ x 5′ Booth
• 6″ Dia. Fume Arm
• Arm Mounting Bracket
• Steel Welding Table – Rear Wall Mounted
Booth Specifications:
• Overall Individual Booth Size: 60”W x 60”D x 84”H
• 2” Sq. Heavy Wall Tube Steel Frame/Legs.
• 12ga Steel Panel – All Welded.
• Adjustable Floor Anchor Pads.
• Free Standing Booths Only.

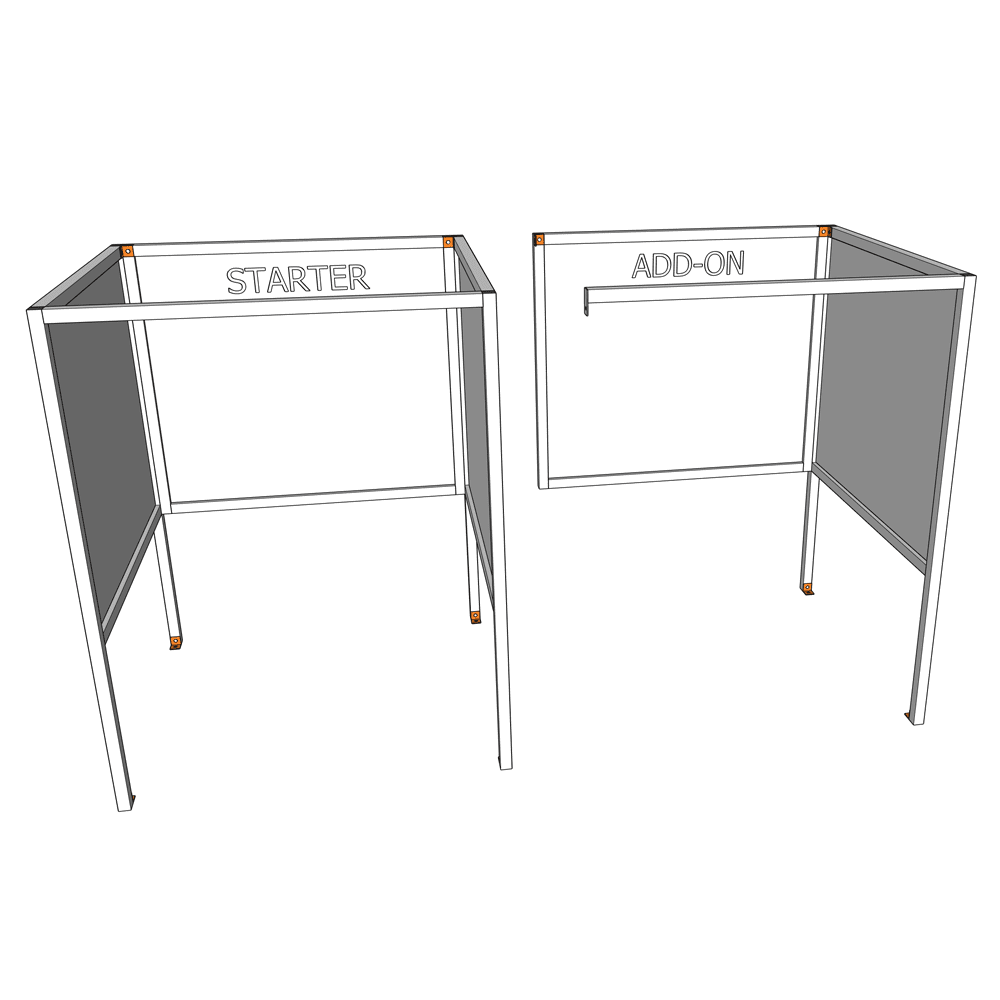

• Starter Units: 2 Sides / 1 Back Panel.
• Add-On Unit: 1 Side/ 1 Pack Panel.
• Stocked in Mat Black Finish Only.
Fume Arm Specifications:
• 7ft Long / 6″ Dia. Duct Connection – Powder coated smooth tube vent arm.
• External joints and supports provide unrestricted airflow.
• Flexible joints rated to 195F.
• Full ring hood & tube grab handles.
• Lever controlled, built-in air damper
